TECH DATA

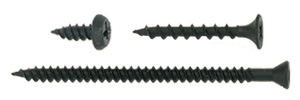

DRYWALL SCREWS SHEET METAL





DRYWALL SCREWS TWINFAST THREAD

SIZE DIAMETTER

SCREW DIAMETER

THREADS PER INCH

STEEL GAUGE

TENSION PULLOUT (lbs.)

SHEAR (lbs.)

average torsional strength (lbs.)



#6



6-9

25 0.019"

165

N / A

34





0.138

6-17

20 0.033"

358

N / A





#7



7-9

25 0.019"

160

N / A

39





0.151

7-16

20 0.033"

372

N / A





#8



8-8

25 0.019"

184

N / A

47





0.164

8-15

20 0.033"

402

N / A





#10



10-8

25 0.019"

194

N / A

75





0.19

10-12

20 0.033"

413

N / A

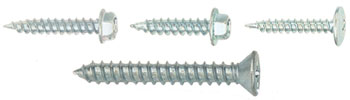

SHEET METAL SCREWS TWINFAST, TYPE A & AB

SIZE DIAMETTER

SCREW DIAMETER

THREADS PER INCH

STEEL GAUGE

TENSION PULLOUT (lbs.)

SHEAR (lbs.)

average torsional strength (lbs.)



#6



6-18













0.138

6-20

20 0.033"

404

562

34



#8



8-15













0.164

8-18

20 0.033"

437

821

47



#10



10-12













0.19

10-16

20 0.033"

460

878

75



#12



12-11













0.216

12-14

20 0.033"

549

1166

108



#14



14-10













0.25

14-14

20 0.033"

644

1038

161











Known as a multipurpose
screw used in a variety of applications.

Coarse Thread, for drywall to wood stud and attaching fixture to either material.

Fine Thread, for drywall to 20-25 gauge metal stud.

Yellow zinc plating used for aesthetics and in low corrosion resistant applications-
salt spray rating is 90 hours.

Recommended drive speed
of 2,500 rpm



The values listed are ultimate averages derived under independent laboratory conditions and apply to screws manufactured and distributed by IFG only. Minimum industry standard safety factor of 2.5 to 1 apply.

Screws are manufactured from cold heading quality steel complying with ASTM A548, grade 1022.

The installed screw must protrude through and beyond the metal member a minimum of three full threads. The distance from the center of a screw to the end or edge of a metal member shall not be less than three times the screw diameter. Steel members shall conform to section 2230, A3 of the code.25ga, 20ga, 18ga-ASTM A653 grade 33 S.Q. with a minimum of 33,000 psi yield strength. 16ga,14ga,12ga-ASTM A653 grade 50 S.Q. with a minimum of 50,000 psi yield strength.

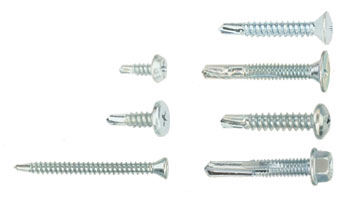

SELF DRILLING





SELF DRILLING SCREWS

SIZE DIAMETTER

SCREW DIAMETER

THREADS PER INCH

STEEL GAUGE

TENSION PULLOUT (lbs.)

SHEAR (lbs.)

AVERAGE TORSIONAL STRENGTH (LBS)



#6

0.138

6-26

20 0.033"

299

480











18 0.044"

377

789











16 0.005"

629

877

34









14 0.069"

655

885











12 0.099"

724







#7

0.151

7-19

20 0.033"

269

544

39









18 0.044"

307

825











0.055"

598

987





#8

0.164

8-18

20 0.033"

304

513











18 0.044"

414

846











16 0.005"

172

1108

47









14 0.069"

744

1131











12 0.099"

872







#10

0.19

10-16

20 0.033"

324

580











18 0.044"

397

865









10-24

16 0.005"

671

291

75









14 0.069"

753

1576











12 0.099"

1142

1567





#12

0.216

12-14

20 0.033"

300

578











18 0.044"

342

914









12-24

16 0.005"

637

1308

108









14 0.069"

760

1836











12 0.099"

1212

2267





#14

0.25

14-14

20 0.033"

325

609











18 0.044"

354

965









14-20

16 0.005"

593

1372

161









14 0.069"

772

1941











12 0.099"

1175

2468











































Screws meet or exceed the following testing standard.

ASTM C954-93           SAE J78 1979            ICC AC118              AISI-CF 92-1
